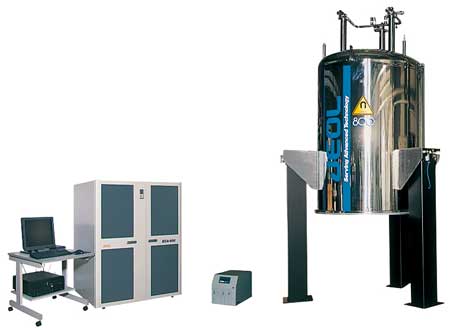

The ECA series of NMR spectrometers is a high performance, research grade NMR system configurable to a wide range of applications. The ECA NMR is available from 300 to 930 MHz field strengths and is 1GHz ready.

The system is designed around a modular, digital NMR electronics chassis controlled from a UNIX or Windows™ workstation and acquisition system. Both the workstation and spectrometer may be connected to a standard network, allowing seamless remote operation anywhere in the world.

The ECA basic configuration consists of two broadband transmitters with one high frequency and one low frequency amplifier. The ECA can be expanded with up to 10 broadband RF transmitters and six RF amplifiers. Every transmitter has an integrated waveform generator for phase, frequency and amplitude control. Pulse shaping is generated under software control, giving you unlimited choice of expression-based or tabular shapes. The ECA can also easily generate off-resonance pulses such as SLP (shifted laminar pulses). Unleashing the power of the ECA console is easy with JEOL’s powerful pulse-programming language.
