ClairScope™ Atmospheric SEM/Correlative Microscope

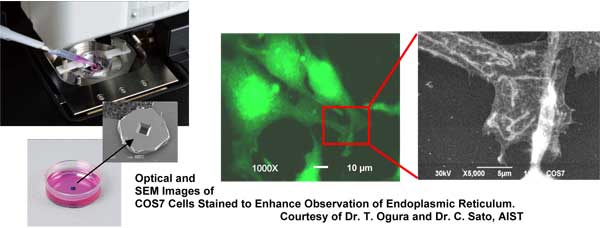

JEOL is the first to develop a truly integrated correlative microscopy tool that consists of an optical microscope coupled with a scanning electron microscope (SEM). Coupling optical microscopy with SEM not only yields complimentary information but also affords the high spatial resolution only achievable through SEM imaging. The key to the design of this instrument is that it allows concurrent imaging of a sample in its native state (in solution) at atmospheric pressure and temperature, by both the optical microscope and SEM.

The specimen area is open, allowing for easy sample manipulation and reagent exchange. The sample holder incorporates a thin film window for SEM imaging of materials (liquids, gels, solids, etc.) at atmosphere. Dynamic phenomena such as crystallization, drying processes, and electrochemical reactions can be followed in real time. Biological materials can be imaged without the lengthy pretreatment (dehydration, fixation, coating, etc.) necessary in conventional SEMs.

ClairScope™ Details
  • Integrates light microscopy with high resolution Scanning Electron Microscopy in a single system
  • Concurrant imaging without sample exchange
  • Samples remain in native state, at atmospheric temperature and pressure
  • Imaging of wet samples and solutions
  • Observation of dynamic phenomena in real time



Optical microscope (OM)
Mirror unit 2 Units Standard [Bright Field Imaging and UV Irradiation for Fluorescent Imaging]
Option: Up to 6 Mirror Units Available
Objective lens 40X Liquid Immersion Lens. Option: Other Objectives Available.
CCD camera High Sensitivity Color CCD Camera [1,600 x 1,200 Pixels]
Scanning Electron Microscope
Source/Resolution W/8nm (30kV)
Accelerating Voltage 10, 20, 30kV
Magnification 100X to 100,000X
Detector High Sensitivity Solid State BSE
Sample holder
Thin Film Dish 32mm Diameter (Volume ~ 10ml); 0.25mm2 Active Window for SEM
Other
Computer PC/Windows Vista
Monitor 2 19” LCD Displays

*Windows Vista is a registered trademark of Microsoft.
