High Resolution Large Chamber SEM

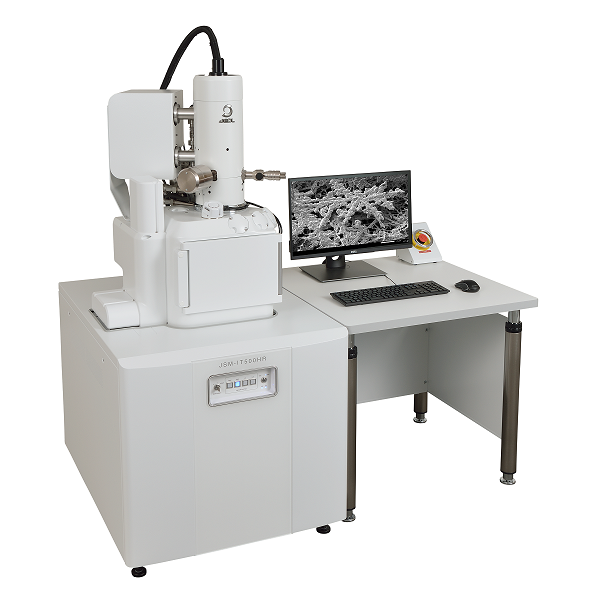

JSM-IT710HR InTouchScope™

The JSM-IT710HR Field Emission SEM is a compact, versatile Schottky Field Emission SEM that delivers the next level of intelligent technology for high spatial resolution imaging and analysis.

JSM-IT710HR InTouchScope™ High Resolution SEM

Our unique in-lens field emission gun and advanced electron optics deliver large probe currents while maintaining a small probe making this microscope ideally suited for high resolution applications. This highly versatile SEM is compact in design yet is equipped with a large chamber and both High and Low Vacuum modes for managing a wide variety of specimen types in their native state.

Smart – Flexible - Powerful

Smart – Accessible at any level with the latest innovations from JEOL’s intelligent technology. Best-in-class auto functions from alignment to focus delivers clear, high-resolution images in seconds. The workflow is fast with Zeromag, using our built-in optical camera for navigation and seamless transition to SEM imaging. View Live EDS both spectrum and X-ray maps with our analytical models. We’ve taken it to the next level by including Automation, from Montage (large area mosaics) to Simple SEM for automatic image collection at multiple locations, magnifications, and conditions. All this technology is packed into a compact platform for unprecedented ease-of-use.

Flexible – The JSM-IT710HR is equipped with a large specimen chamber with multiple ports that are optimally positioned for analytical attachments such as: multiple EDS, EBSD (co-planar with EDS), WDS, CL, STEM, heating/cooling sub-stages etc. There is a large, internal, mechanically eucentric stage with the advantage of easy placement of large and heavy specimens and arranging their orientation prior to closing the door and evacuating the chamber.

Powerful – The combination of JEOL’s unique in-lens field emission gun with up to 300nA of beam current and the aperture angle control lens which optimizes large probe currents to the smallest probe diameter delivers high spatial resolution imaging and analytical results. Our high-sensitivity, quadrant BSE detector provides a Live 3D surface reconstruction enhancing your view of specimens with complex topography. Analytical models include JEOL’s fully embedded EDS system for Real-Time, Live EDS spectra and Live X-ray maps. Built-in automation both streamlines and enhances throughput and internal Data Management software links all data for instant view of analysis locations. This SEM also supports live web viewing and remote control and is open to Python scripting.

Key Features

  • In-lens Schottky field emission gun delivers ≥300nA to the specimen
  • Advanced auto functions including beam alignment, focus, astigmatism correction
  • Large specimen chamber with multiple ports
  • Mechanically eucentric, large, specimen stage mounted in the chamber
  • Zeromag – Simplifies navigation providing a seamless transition from an optical to SEM image. All data is linked: color image – SEM images – EDS data for map of all analysis locations.
  • Live Analysis – Full integration of JEOL EDS with Real-Time Live spectrum and Live X-ray map
  • Automation. Montage – Automate multiple large area image mosaics (stitching) and EDS maps (analytical models). Simple SEM – simplify workflow and automate routine imaging. Recipes for multiple kV, detector, magnifications and more!
  • High Vacuum and Low Vacuum models for any sample type. Easy one click transition from High to Low vacuum.
  • Specimen Exchange – Integrated step-by-step guide from specimen introduction to automatic image formation. Unprecedented Ease of Use at any level!
  • Small footprint and easy maintenance (no cooling water required)

Zeromag

Easy navigation from optical to live SEM image.
Zeromag

Real-Time EDS – Live Analysis

Embedded JEOL EDS for Live Analysis – View Live Spectrum or Live Map. Interchange views with one click!
Real-Time EDS – Live Analysis

Live 3D

Quadrant Backscatter Detector can display a Live 3D Image providing additional insight for samples with complex topography.
Live 3D

Automation – Montage (automatic large area image capture)

Capture images automatically then stitch them to form a montage image automatically. Includes X-ray maps with Analytical models.
Automation – Montage (automatic large area image capture)
Specimen: Limestone, number of fields:99 (9 x 11), Accelerating voltage: 12kV, Magnification/field: X70

Automation – Simple SEM for Image Capture

Automate image collection at multiple locations, conditions, and magnifications:
  1. Set Conditions
  2. Set Targe Areas
  3. Start!
Automation – Simple SEM for Image Capture
