JEOL USA Transmission Electron Microscopes

JEOL is a world leader in the development and manufacture of leading edge, high performance, high stability Transmission Electron Microscopes (TEM). JEOL introduced its first TEM over 70 years ago and has been developing and producing TEMs designed for life sciences and material sciences ever since.
JEOL innovations in TEM/STEM technology range from extreme ultrahigh-resolution optics that enable atom-to-atom imaging and single particle analysis, as well as analytical characterization to the picometer level.
Scroll down for our complete product listing by application, or click to go directly to analytical techniques and TEM-related areas of interest.

TEM for the Life Sciences

120kV TEM

JEM-120i

JEM-120i
Imaging and cryomicroscopy excellence in a compact and easy to use 120kV TEM.
200kV TEM

JEM-2100 Plus

JEM-2100 Plus
Multipurpose 200kV LaB6 TEM that provides solutions for a wide range of applications from materials science to medical/biological studies, all at a low cost of ownership.
200kV TEM

 JEM-F200 "F2"

JEM-F200 "F2"
Advanced analytical, high throughput 200kV S/TEM with Cold Field Emission Gun and dual Silicon Drift Detectors.
200kV TEM

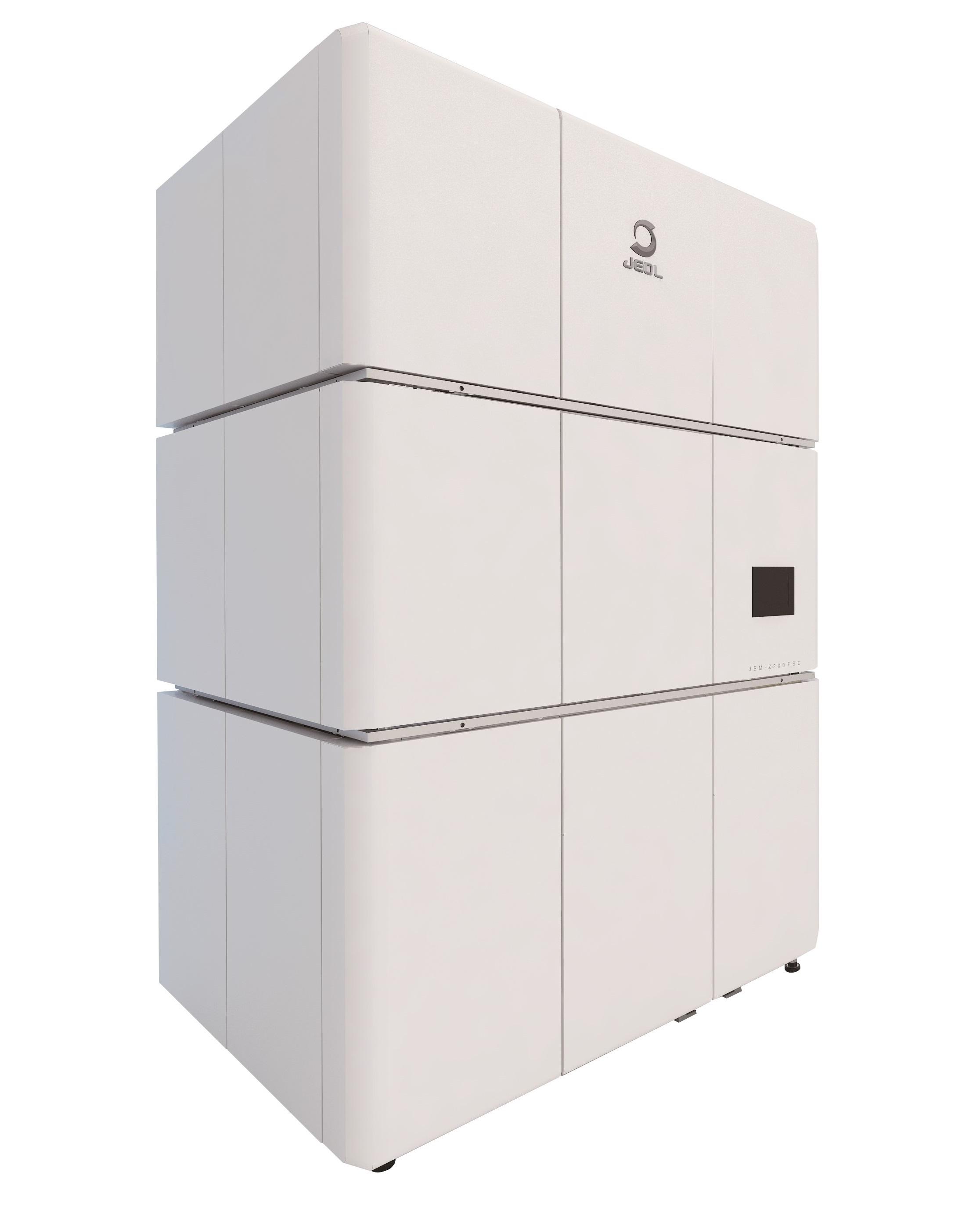

CRYO ARM™ 200

CRYO ARM™ 200
Automatic acquisition of image data for Single Particle Analysis - 200kV.
300kV TEM

CRYO ARM™ 300 II

CRYO ARM™ 300 II
Specializes in the observation of electron beam-sensitive specimens, such as protein, for single particle analysis, tomography and MicroED - 300kV.

TEM for Materials Science

120kV TEM

JEM-120i

JEM-120i
Imaging and cryomicroscopy excellence in a compact and easy to use 120kV TEM.
200kV TEM

JEM-2100 Plus

JEM-2100 Plus
Multipurpose 200kV LaB6 TEM that provides solutions for a wide range of applications from materials science to medical/biological studies, all at a low cost of ownership.
200kV TEM

 JEM-F200 "F2"

JEM-F200 "F2"
Advanced analytical, high throughput 200kV S/TEM with Cold Field Emission Gun and dual Silicon Drift Detectors.
300kV TEM

GRAND ARM™2

JEM-ARM300F2 GRAND ARM™2
World's highest resolution in a commercially-available TEM - 300kV.
200kV TEM

NEOARM

NEOARM
Atomic resolution TEM with (Cold-FEG) and next-generation Cs corrector (ASCOR).
200kV TEM

Monochromator

Monochromator
Ultrahigh energy resolution EELS analysis of materials at the atomic scale.
200kV TEM

MARS

MARS
A revolutionary magnetic field-free atomic resolution imaging system.

TEM for Semiconductor

200kV TEM

 JEM-ACE200F

JEM-ACE200F
Automated, high-throughput S/TEM designed to meet the unique demands of semiconductor device development and manufacturing.

TEM Options

TEM

JEOL-IDES Products

JEOL-IDES Products
Add time resolution to the TEM's exceptional spatial resolution enabling new applications and the exploration of the dynamics of specimens across a range of very fast time scales.
TEM

SightSKY™ CMOS Camera

SightSKY CMOS Camera
High-sensitivity, low-noise 19 M pixel CMOS sensor enables clearer imaging with fine specimen details observable even at low electron doses.
TEM

SiN Window Chip

SiN Window Chip
Add time resolution to the TEM's exceptional spatial resolution enabling new applications and the exploration of the dynamics of specimens across a range of very fast time scales.
TEM

Stack N Viz Software

SiN Window Chip
3D reconstruction and 3D visualization software applications.
