JEOL JES-X3 Series ESR Spectrometers

A new design of microwave unit. Much better sensitivity using ‘High Sensitivity Mode’

Electron Spin Resonance (ESR), also known as Electron Paramagnetic Resonance (EPR), is a powerful analytical method to detect, analyze and determine the characteristics of unpaired electrons in a substance. It is clear that the state of electrons in a substance have a strong influence on its characteristics and functionality, so evaluation by ESR is becoming more and more important. Many types of substances, from electronic materials to catalysts to biological samples can be studied regardless of whether they are solid, liquid, or gas. A wide range of ESR techniques are possible using suitable attachments together with the basic instrument.

Recently, it has been widely accepted that even relatively few unpaired electrons in a sample can affect the function of the material, so lower detection limits (higher sensitivity) is required of ESR measurements. JEOL has achieved higher sensitivity by developing a low-noise Gunn oscillator for its new spectrometer, the JES X3 series.

New functions for data acquisition and analysis enable a smooth transition from initial experiment selection to final detailed measurement.

  • New Auto-tuning that has better reproducibility and shorter tuning time.
  • Fully flexible sequential measurements including randomized values of parameters, e.g. sample temperature, microwave power, etc.
  • A foot operated trigger (option) to start data measurement can be used to minimize dead time after reagents are mixed to generate short lived radicals.



Major New Functions

  • Easy-to-use operation interface under Windows10™
  • Hands-free measurement start using foot switch.
  • Both progressive and randomized settings of sequential measurement parameters possible.
  • Improved display of multi-dimensional data.
  • Batch processing of sequentially measured data, including background subtraction.



Major Features

  • For measuring radicals generated by photo-irradiation, the standard universal cavity has an optical irradiation window which has high transmittance.
  • High stability Auto-tuning.
  • Each attachment easy to attach and detach.

Details


Download
The JES-X3 Series Product Brochure

You can also read an in-depth published article on the history of JEOL NMR and ESR


  Pole Diameter Pole Gap Max. Field (T) Homogeneity Sensitivity
JES-X310 15 cm 60mm 0.65 5 x 10-6 5 x 109 spins / 10-4 T
(at 100 kHz modulation)
JES-X320 24 cm 62mm 1.30 5 x 10-6 5 x 109 spins / 10-4 T
(at 100 kHz modulation)
JES-X330 36 cm 75mm 1.40 5 x 10-6 5 x 109 spins / 10-4 T
(at 100 kHz modulation)

rss

JEOL Resources

Documents of interest in support of your JEOL product

Strong interaction between light and electrons (5) "Frequency dependence of line width in ESR and FMR"

Application Note ER200010E

Using the transmission ESR/FMR measurement method, spectral analysis can be done in the situation that it is not affected by the spin-cavity coupling (interaction that produce the Purcell effect and a strong coupling state) due to the high spin density samples. Obtained spectral line width of a sample is necessary to estimate an important parameter, cooperativity (=g2m∕ 𝑘𝑐 ∙𝛾𝑚, 𝑘𝑐 and 𝛾𝑚 are HWHM (half width)) which means the degree of interaction between photon and spins. Figure 1(a) shows frequency dependence of line width obtained by paramagnetic resonance (sample is DPPH powder shown in Application Note ER200006E ). Figure 1(c) shows frequency dependence of line width obtained by ferromagnetic resonance (sample is YIG thin film shown in Application Note ER200008E - ER200009E ).

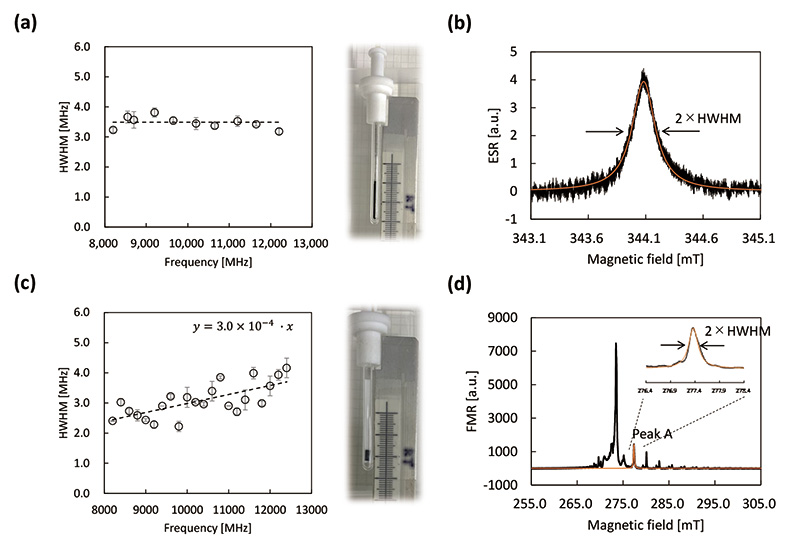

Fig.1
Frequency dependence of spectral line width by transmission ESR/FMR measurement method.

(a) DPPH sample (right photo) and frequency dependence of the line widths. (b) DPPH-ESR spectrum by transmission method. (c) YIG thin film (right photo) and frequency dependence of the line widths (Peak A). (d) YIG-thin-film- FMR spectrum by transmission method.

Damping constant and surface quality

Figure 1(a) and 1(c) show a difference on the frequency dependence of spectral line widths with respect to a paramagnet and a ferromagnet. The line width of FMR spectrum has a property that is proportional to the irradiated frequency. Its proportional coefficient is called damping constant. This damping constant α is very important on the evaluation of ferromagnetic materials. The line width (∆𝐻) of FMR spectrum and FMR frequency (𝑓) have a relation as

ΔH = 𝛼𝑓 / |𝛾𝑒| + ΔH0.

∆𝐻0 reflects the homogeneity of the film materials. Not zero value of ∆𝐻0 means the inhomogeneity of the film[1]. In recent years, spintronics devices using ferromagnetic materials are actively studied. Therefore, evaluation of the damping constant is becoming more important. In this field, a vector network analyzer is usually used for FMR measurements. Introduced waveguide method in this application note is unfortunately not sensitive. However, there are not serious constraints for sample size and shape, and it has a merit on the homogeneity of B1 vector of microwave.

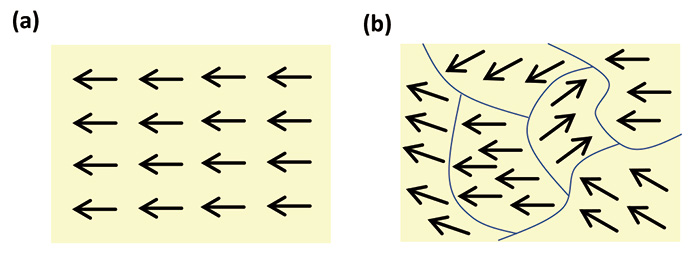

Fig. 2
Homogeneity of ferromagnetic thin films.
(a) Homogeneous film. (b) Inhomogeneous film.

Reference: [1] J. M. Shaw, H. T. Nembach, and T. J. Silva, J. Appl. Phys. 108, 093922 (2010).
