Stack N Viz: a suite of software by StackerNEO and Visualizer-evo

StackerNEO 3D Reconstruction Software

StackerNEO 3D Reconstruction Software
StackerNEO is the application software that aligns and reconstructs the continuous cross-sectional images systematically obtained.

Visualizer-evo 3D Visualization Software

Visualizer-evo is an application for viewing volumes (3D data) reconstructed with StackerNEO. In addition to volume rendering, multislice and isosurface basic 3D rendering/viewing techniques, it possesses advanced functions in the form of 3D spatial length and angle measurement, video creation, volume segmentation, inter-volume computation, and 3D PDF output. Furthermore, it's simple, refined interface makes all operations intuitively easy, setting it apart from typical 3D visualization software.

Stack N Viz - 3D Reconstruction of SEM and EDS Data - EXAMPLE

StackerNEO 3D Reconstruction Software

Functions of StackerNEO

Brightness Correction
Brightness Correction: a series of images can be processed at once to be similar
Manual Alignment
Manual Alignment: optimize by intuitive manual operation with drag and drop
Skew Correction
Skew Correction: in case of error in the alignment result (especially leaning), the LINGRAM method corrects it effectively

Visualizer-evo 3D Visualization Software

Features

  • Perform volume tasks using a mouse (rotation, movement, zooming)
  • Color & transparency map adjustment functions enable flecible rendering
  • Projection method (SUM, MIP, ALPHA) can be selected for volume rendering
  • Optimize volume with filters using 3D kernels
  • Render slices at arbitrary angles and positions in addition to X, Y and Z planes
  • Perform 3D length & angle measurements and output results to files
  • Movie creation & editing function can record all operation results
  • Generate polygon data and output in CAD data (.dxf) & 3D PDF formats
  • Volume Segmentation function enables export of complex shapes
  • Simultaneous volume rendering of up to 5 sets
  • Enables independent setting of individual volume size, scale, offset

Focused Ion Beam SEM

Serial Block Face SEM

Array Tomography

Functions / Operations of Visualizer-evo

IsoSurface function. Isosurface rendering for up to 3 layers.
IsoSurface function. Isosurface rendering for up to 3 layers.
Length Measurement function. 3D spatial length & angle measurement.
Length Measurement function. 3D spatial length & angle measurement.
3D PDF Creation function. PDF's can be interactively rendered in 3D with Acrobat Reader.
3D PDF Creation function. PDF's can be interactively rendered in 3D with Acrobat Reader.
Function for simultaneous reading of multiple 3D data. Perform volume movement/rotation and composition.
Function for simultaneous reading of multiple 3D data. Perform volume movement/rotation and composition.
Measure length & angle in a #D image and output the results to a file.
Measure length & angle in a #D image and output the results to a file.

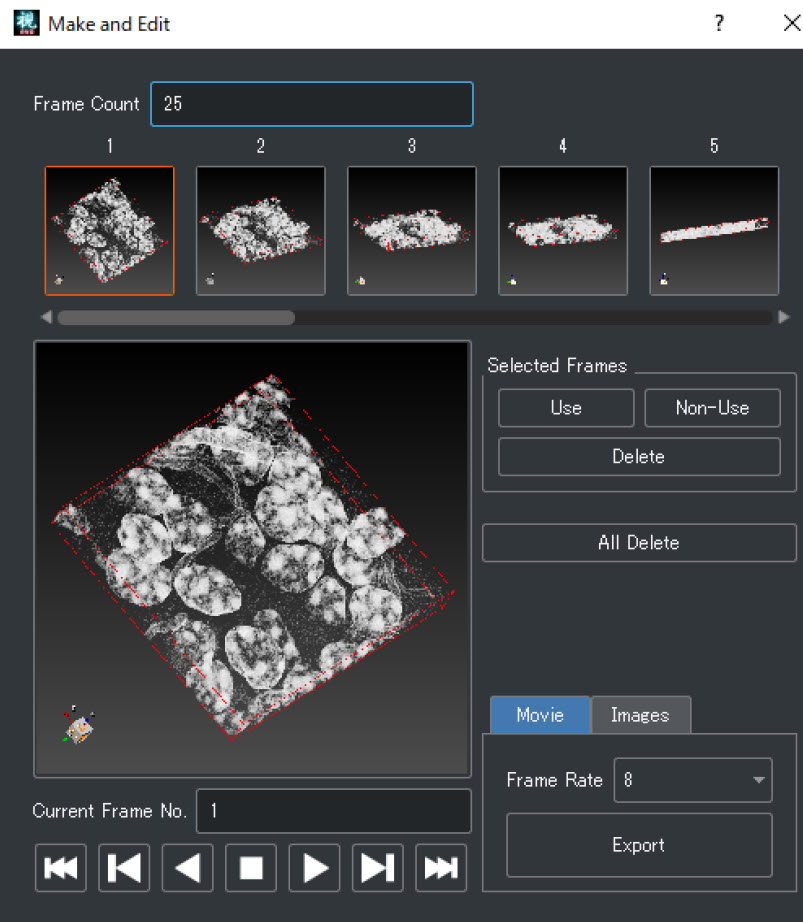

Create and edit a movie that can record the history of all operations.
Create and edit a movie that can record the history of all operations.
Adjustment of the color map and the opacity map.
Adjustment of the color map and the opacity map.
Segmentation
Segmentation
