JCM-6000PLUS NeoScope Benchtop SEM

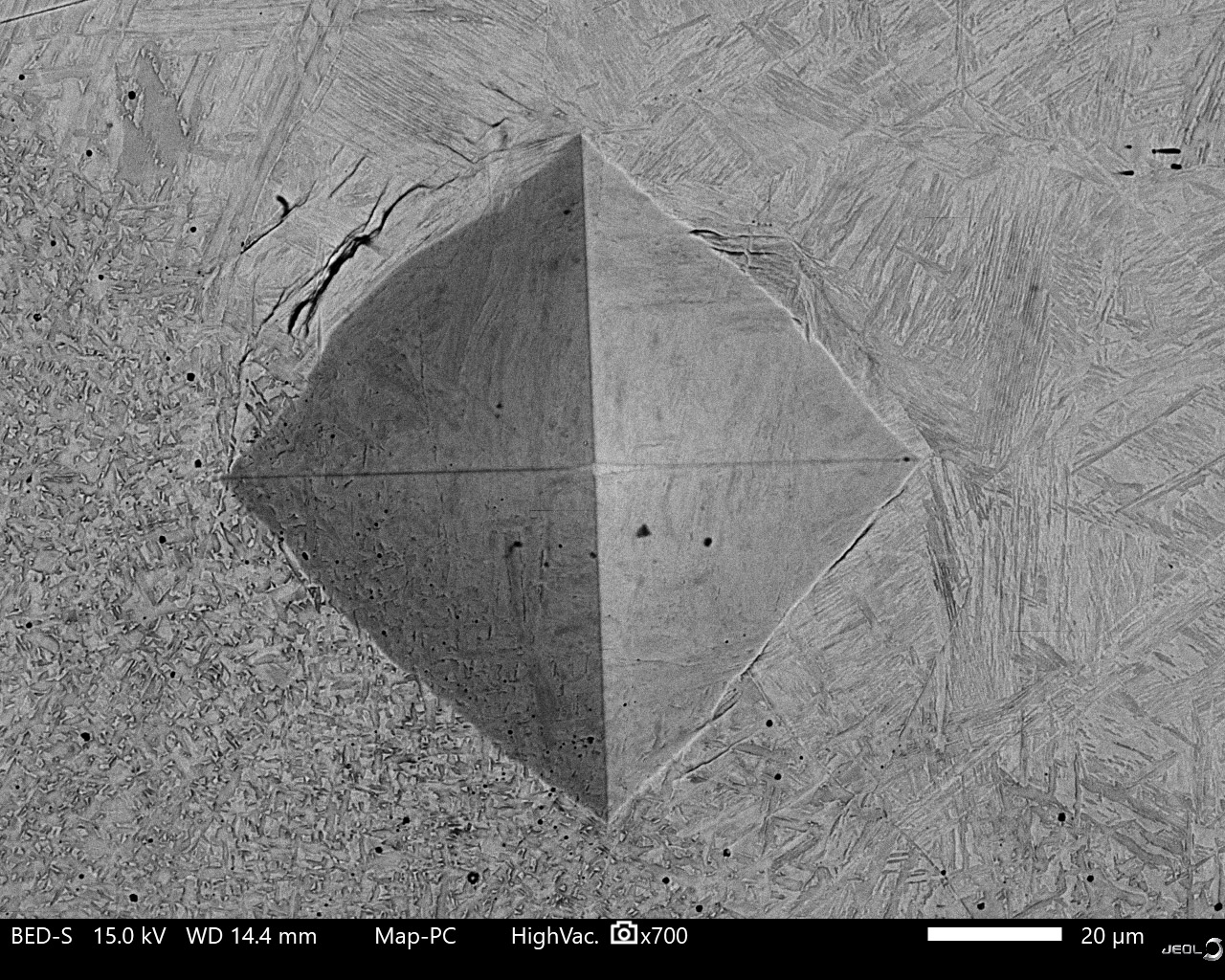

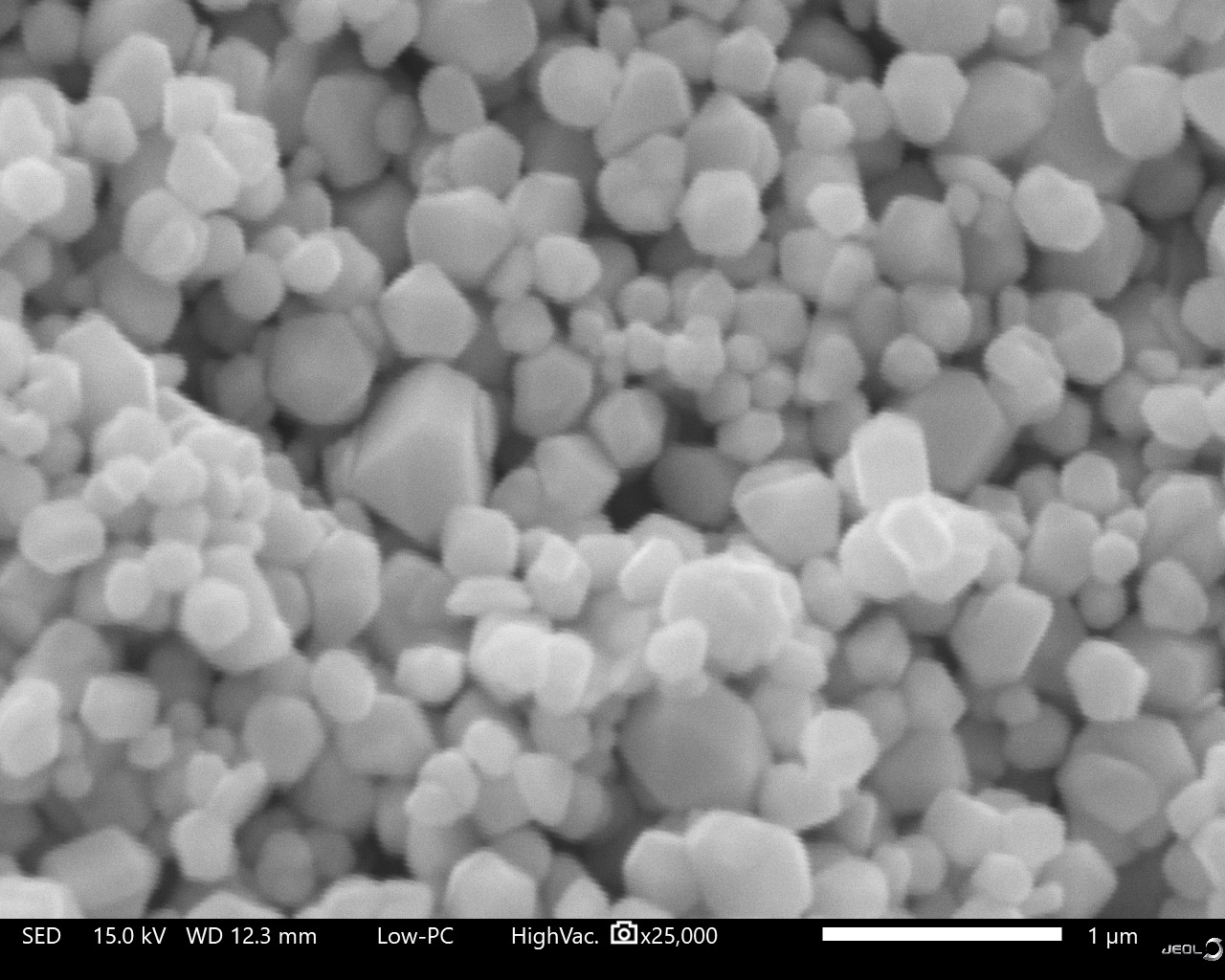

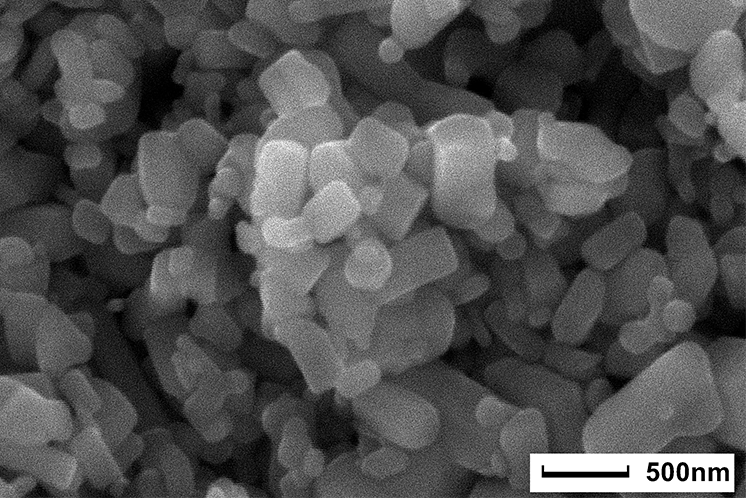

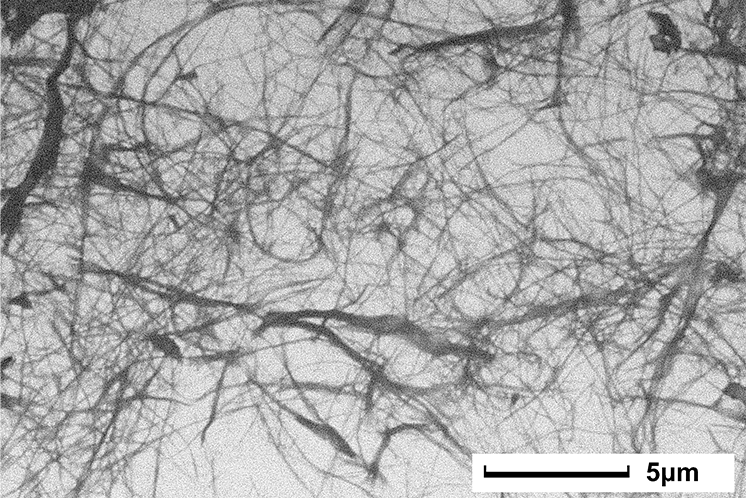

Application Images

Boron Clusters

EDS map and spectra of electrical connector

EDS map of battery cross section




Leaded Glass Bead EDS Map

Leaded Glass Bead (LV BSE)

Lithium Battery cross section

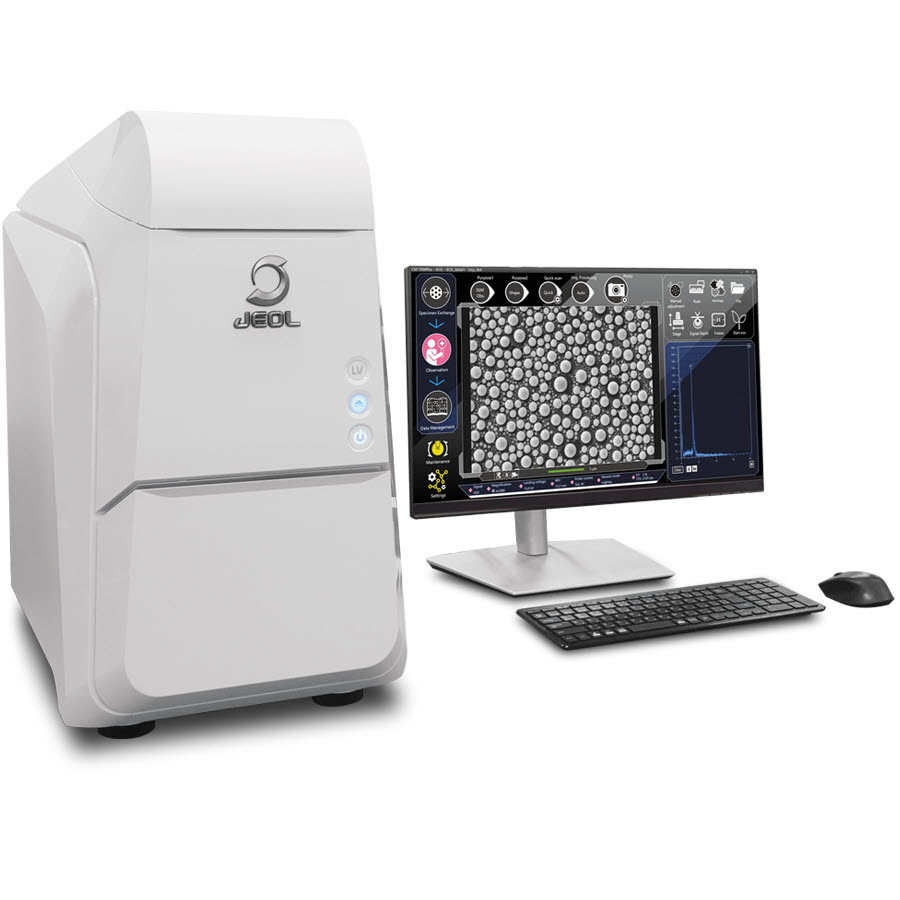

The NeoScope benchtop SEM complements both optical microscopes and traditional SEMs in the lab, and can be configured for advanced analytical applications. This compact electron microscope is as simple to operate as a digital camera, but has the powerful electron optics of an SEM, with up to 60,000X magnification. The NeoScope makes it simple for any skill level of operator to obtain outstanding SEM images in less than three minutes from sample loading to imaging.

The microscope has a sleek new design with up-to-date features. Operation is via a touch screen, and is simplified with auto focus, auto alignment, auto contrast and auto brightness controls. The NeoScope operates in both low and high vacuum modes with three settings for accelerating voltage. These parameters are suitable for a variety of applications, all of which can be programmed in special pre-stored recipe files.

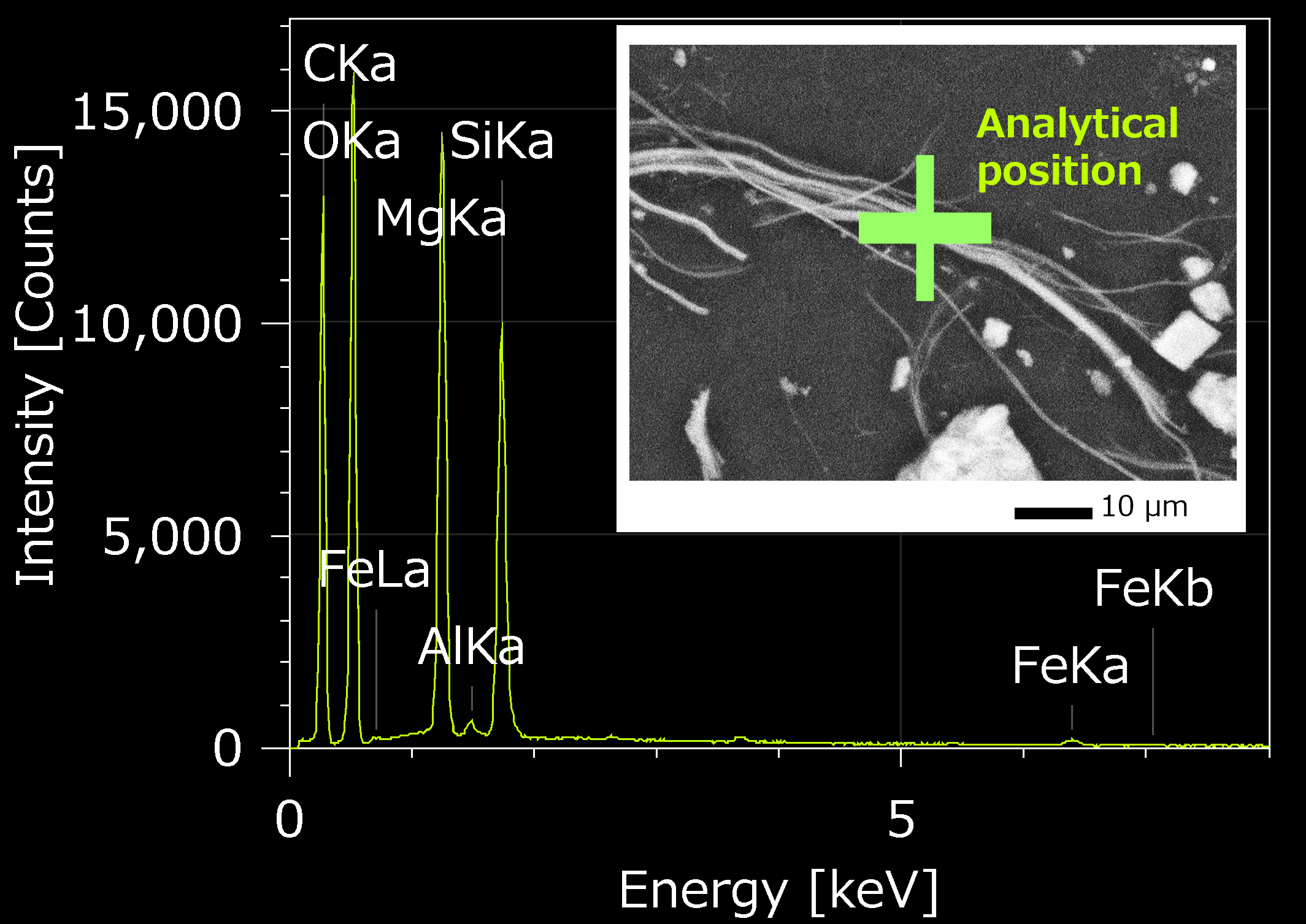

This all-new NeoScope now offers both an Everhart Thornley type SE detector as well as our high sensitivity solid state BSE detector. A full-featured Energy-dispersive X-ray Spectroscopy (EDS) with SDD technology is optionally available for advanced analytical applications.

Whether used by trained electron microscopists as a simple screening instrument, or by lab technicians as a higher resolution alternative to the light microscope, the NeoScope accelerates the pace of research in the life sciences, forensics, and pharmaceutical fields as well as serves as a high throughtput failure analysis tool.

Industrial & Measurement

Nikon Metrology Inc.
(810) 220-4360


Nikon Instruments Inc.

NeoScope Details

  • Automatic image formation after sample introduction within 3 minutes
  • High resolution (60,000X) and large depth of field
  • Multi-touch screen interface for intuitive operation
  • Advance automatic functions (focus, stigmation, brightness/contrast)
  • High and low vacuum modes
  • Three selectable accelerating voltages
  • Secondary electron and solid state backscattered electron detector
  • Large sample coverage (up to 70 mm diameter)
  • Options include: motor drive stage and EDS
Magnification 10X to 60,000X (printed as a 128mm x 96mm micrograph)
Observation Modes High vacuum and low vacuum
Accelerating Voltages 15 kV, 10 kV, and 5 kV (3-position switch)
Detectors   ET type Secondary Electron Detector
Solid State Backscatter Electron Detector (Composition, Topographic and Shadow images)
Specimen Stage Manual control for X and Y
X: 35mm, Y: 35mm * (motor drive option)

Tilt Rotation Motorized Holder: T = -15º to +45º; R = 360º
Maximum Specimen Size

70mm diameter, 50mm thickness

Display Data Accel. Voltage, magnification, micron bar with value
