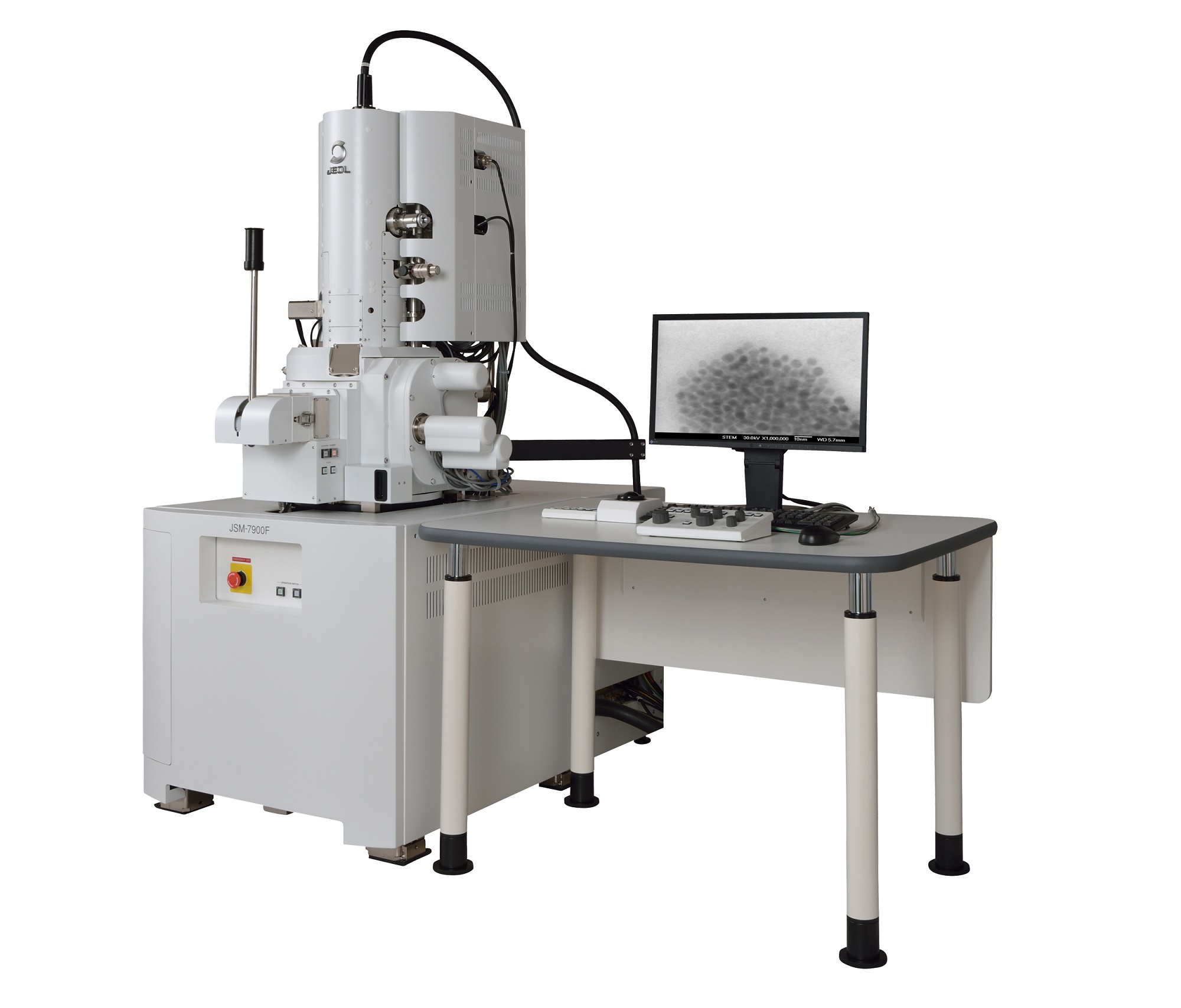

JSM-7900F Field Emission SEM

The JSM-7900F Field Emission SEM is a uniquely flexible platform that combines the ultimate in high resolution imaging with unparalleled nano scale microanalysis. This tool excels in lightning fast data acquisition through simple and automated operation.

Applications include imaging and analysis of metals, magnetic materials, semiconductors, ceramics, medical devices, and biological specimens.

At the heart of this premier microscope is the new electron optical system, NeoEngine, that significantly enhances alignment accuracy, optimizes probe diameter at all conditions, and simplifies observation for all levels of operators

A powerful new navigation system, Smile Navi, guides the operator through the data acquisition process. The novice can master basic SEM operation steps and an online training guide provides comprehensive support.

JSM-7900F Field Emission SEM Details

  • Resolution: 7 Å @ 1kV, 6 Å @ 15kV, 6 Å in STEM
  • Analytical resolution sub 30 nm scale
  • Probe current >500nA
  • High sensitivity BE detector providing exceptional performance at low accelerating voltages
  • Ultralow kV in-lens detectors
  • GBSH-S (GENTLEBEAM™ Super High mode) enabling high resolution imaging at extremely low accelerating voltages (down to 10V)
  • In-lens Schottky Plus field emission electron gun and low aberration condenser lens provide higher levels of brightness.
  • Super Hybrid Lens (SHL), a combination of electrostatic and electromagnetic lenses, to support ultra high resolution imaging and analysis of various samples ranging from magnetic materials to insulators.
  • Ample probe current is available at low accelerating voltage, supporting various applications from high resolution imaging to high speed elemental mapping.
  • A new sample exchange system is designed to change samples in a safe, speedy, seamless manner through simple operation.

LV capability supports operation at low chamber vacuum (from 10 to 300 Pa) for the purpose of imaging and microanalysis of non-conductive samples. The LV configuration includes a retractable solid state backscattered electron detector. Via software control, both backscatter detector and LV orifice can be retracted without breaking chamber vacuum. This is a JEOL exclusive feature that guarantees unrestricted low magnification imaging and the ability to deliver maximum beam currents in HV operation. The system comes with an automatic pressure controller with motorized leak valve and uses dry nitrogen.

Low vacuum mode pressure 10 Pa ~ 300 Pa
Resolution in Low Vacuum mode Backscattered electron image: 1.5 nm (30 Pa, 30 kV)
Secondary electron image: 1.8 nm (60 Pa, 30 kV)
Orifice and BSE detector
LV BEI standard, LV SED option
Retractable in vacuum
