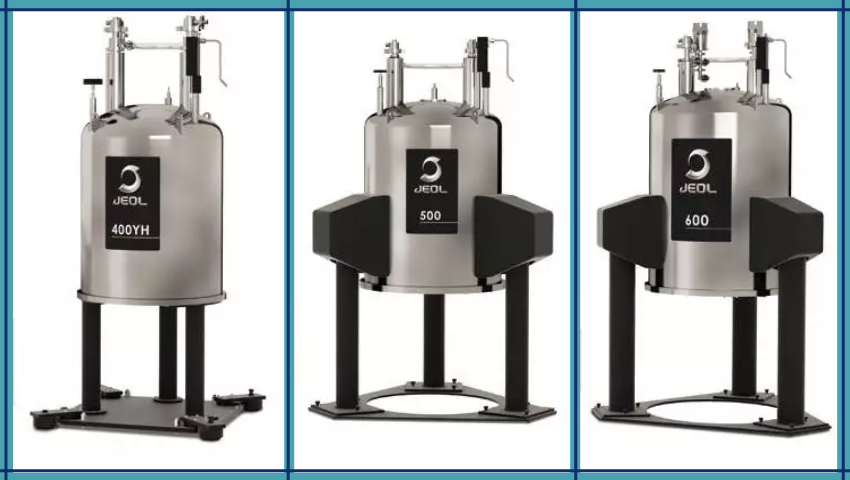

A Deep Dive into JEOL NMR Spectrometers
Every molecule tells a story, but capturing it in full detail is rarely straightforward. Peaks overlap, interactions evolve, and distinguishing meaningful signals from noise demands both precision and stability. Nuclear Magnetic Resonance (NMR) spectroscopy enables accurate signal separation and structural assignment, even in complex spectral environments. As part of the
ECZ Luminous platform, the ECZL series NMR spectrometers from JEOL USA are designed to deliver high-resolution spectral data and robust molecular characterization for both standard and complex samples. Integrating sensitivity, precise digital control, and system flexibility, they support workflows spanning routine analysis to structural and functional investigations.
The ECZL S Series: Streamlined for Routine Solution NMR
ECZL S Series NMR spectrometers are purpose-built for high-efficiency, routine liquid-state NMR in laboratory environments. Operating at 400 MHz, they deliver stable, reproducible performance within a compact, space-conscious design.
A defining feature of the ECZL S Series is the Smart Transceiver System (STS), which enables ultra-fast digital control with 5 ns resolution. This ensures precise pulse execution and consistent reproducibility across standard workflows. Importantly, the system shares the same digital control architecture as higher-tier models, maintaining consistent pulse programming, timing precision, and data integrity across all experiments.
These capabilities translate into:
- Simplified setup for routine measurements
- Efficient automation of repetitive workflows
- Reduced laboratory footprint without sacrificing performance.
The combination of performance and efficiency makes the S Series well suited for applications where throughput and reliability are critical, including synthetic chemistry verification, industrial quality control, and pharmaceutical development.
The ECZL R Series: High-Performance in a Compact Frame
ECZL R Series NMR spectrometers support both routine and advanced analysis, providing a flexible platform for techniques such as structural elucidation, polymer characterization, and solid-state analysis. Available from 400 to 600 MHz, they balance high performance with a significantly reduced laboratory footprint.
With a space-efficient system design, ECZL R Series NMR spectrometers achieve roughly one-third the volume of earlier models while delivering the ability to perform both liquid-state and solid-state NMR. This dual functionality allows laboratories to broaden their analytical scope without requiring additional infrastructure or separate systems for different experiment types.
An enhanced digital lock circuit further supports performance by stabilizing the NMR spectrometer's magnetic field during long experiments, ensuring consistent data quality over extended acquisition times.
The ECZL R Series offers a mix of versatility and efficiency that enables:
- Analysis across diverse sample types, from small organic molecules to complex polymers and solid materials
- Effective use of limited laboratory space
- Stable performance during long-duration experiments.
Consequently, these NMR spectrometers are widely used in polymer research, pharmaceutical development, and materials science, particularly in laboratories where space constraints demand compact yet capable instrumentation.
The ECZL G Series: The Flagship Research Platform
ECZL G Series NMR spectrometers represent the most advanced systems within the ECZL product line. Covering frequencies from 400 MHz to 1.3 GHz, they are designed to support demanding research environments and sophisticated NMR methodologies, including multidimensional NMR and diffusion-ordered spectroscopy (DOSY).
At the core of the ECZL G Series NMR spectrometer is the Mult-Frequency Drive System (MFDS), which enables simultaneous multi-nuclear resonance experiments, including triple-resonance configurations. The architecture can also be expanded beyond standard three-channel configurations (e.g., ^1H, ^13C, ^15N), allowing the NMR spectrometer to scale with increasing experimental complexity. High-output magnetic field gradients further enhance performance through improving spectral resolution and enabling advanced pulse sequences.
Collectively, the features of the ECZL G Series NMR spectrometers translate into:
- A high dynamic range for complex samples
- An expandable system architecture to support evolving experimental needs
- Advanced multidimensional NMR experiments.
Applications like protein structure determination, natural product characterization, and high-field drug discovery can depend on the sensitivity and flexibility offered by such a high-performance NMR spectroscopy system, generating reliable, quality data for complex and low-abundance samples.
Enhancing Performance: Probes and Software
The overall effectiveness of any NMR spectrometer is shaped not only by its core architecture, but also by the probes and software that extend its functionality.
The ROYALPROBE™ HFX
Engineered to control hydrogen, fluorine, and carbon nuclei simultaneously, the ROYALPROBE™ HFX is particularly valuable in fluorinated pharmaceutical research, where multi-nuclear data accelerates structural validation and compound analysis.
Sensitivity with SuperCOOL and UltraCOOL
NMR spectrometers from JEOL USA deliver enhanced sensitivity through cryogenically cooled probes, including SuperCOOL and UltraCOOL, reducing thermal noise and enabling:
- The detection of low-abundance samples
- Faster acquisition of carbon-13 spectra
- Shorter experimental timelines.
This level of sensitivity in NMR spectrometers is crucial when working with limited or high-value materials.
DELTA™ NMR Data Processing Software
JEOL USA's DELTA™ NMR Data Processing Software is applied as an integrated platform for NMR spectrometer control, data acquisition, and spectral analysis across the ECZL series. Designed for both efficiency and precision, it enables users to set up experiments, process NMR data, and interpret results within a single system.
Key features include:
- Automated 3D gradient shimming to maintain magnetic field homogeneity
- Integrated tools for data acquisition and spectral processing
- Remote access capabilities for system monitoring and collaborative operation.
By integrating instrument control with advanced data processing, DELTA streamlines the progression from experimental setup to final analysis, reducing manual intervention and improving workflow consistency.
NMR Spectrometers for Modern Scientific Workflows
Built to support both routine applications and research challenges,
JEOL USA's ECZL series NMR spectrometers combine performance and adaptability to meet evolving analytical demands. Contact JEOL USA now to discover how the ECZL series can support your next breakthrough.
