What's the Difference Between COSY and TOCSY NMR?
Crowded proton NMR spectra quickly expose the limitations of one-dimensional analysis. Overlapping resonances, distorted multiplets, and second-order effects can obscure connectivity, even under optimal experimental conditions. Two-dimensional NMR can address these challenges by spreading spectral information across a second frequency axis, ensuring relationships between nuclei are easier to identify. Homonuclear correlation experiments underpin two-dimensional NMR approaches applied to probe proton-proton through scalar (J) coupling. Correlation spectroscopy (COSY) and Total Correlation Spectroscopy (TOCSY) are among the most widely used techniques for analyzing proton-proton coupling networks, but they do differ fundamentally in the type of structural insights they reveal.
Defining the Techniques: COSY vs. TOCSY NMR
COSY: Mapping Immediate Neighbors
COSY is often the first two-dimensional technique applied to an unknown compound, providing an accessible entry point into proton-proton connectivity. Its standard pulse sequence uses two 90-degree radiofrequency pulses separated by an incremented evolution period, allowing magnetization to evolve in the indirect dimension before transfer occurs. That transfer proceeds through scalar, or J, coupling during detection and is inherently limited in range. Consequently, only directly coupled nuclei exchange magnetization, most commonly through two-bond or three-bond proton-proton interactions. The resulting spectrum features diagonal peaks corresponding to individual resonances, accompanied by cross-peaks that identify which protons are immediate neighbors. Through this, COSY delivers a local connectivity map that enables chemists to build structural assignments step by step, tracing bonding relationships through the molecule.
TOCSY: Revealing Entire Spin Systems
TOCSY builds on the principles of COSY through incorporating a spin-lock mixing period into the pulse sequence. Magnetization can be maintained in the transverse plane under this continuous radiofrequency field, enabling it to move beyond a single coupling interaction. Instead of halting at nearest neighbours, magnetization is relayed stepwise through an entire network of J-coupled spins, as long as the coupling pathway remains uninterrupted. The information revealed links every proton within a given spin system, independent of the number of bonds between them. Rather than tracing individual bond connections, TOCSY focuses on entire spin systems, providing a more comprehensive view of proton networks within a molecule.
Critical Differences in COSY and TOCSY NMR
Scope of Magnetization Transfer
The difference between COSY and TOCSY is easiest to see in a simple chain of coupled protons labelled A, B, and C. In a COSY experiment, cross-peaks appear between A and B and between B and C, reflecting direct coupling relationships. A and C show no correlation because they are not immediately coupled. TOCSY, on the other hand, behaves differently. Magnetization propagates through the entire coupling network, so all three protons display mutual correlations and the complete spin system appears all at once. This contrast highlights how COSY supports incremental structure building by following direct couplings, whereas TOCSY reveals which protons belong together within a shared coupling network.
Spectral Complexity and Crowded Regions
COSY spectra are generally less congested and easier to interpret. Because magnetization transfer is restricted to direct couplings, the number of cross-peaks remains limited, keeping spectral congestion under control. The reduced complexity of COSY spectra makes the technique well suited for small molecules, early-stage assignments, or situations requiring rapid confirmation of local connectivity.
In contrast, TOCSY spectra are intentionally more crowded. Magnetization is shared among all protons within a spin system, producing a dense network of correlations. Within heavily overlapped regions, however, this complexity becomes advantageous. By extracting a single row or column, analysts can isolate all resonances associated with a specific residue, sugar ring, or repeating unit, even when individual chemical shifts are difficult to distinguish.
Experimental Parameters and Sensitivity
COSY experiments are generally robust and straightforward to run, ensuring their easy integration into routine workflows. TOCSY, by comparison, demands closer control of experimental parameters, with mixing time playing a particularly important role in determining the extent and quality of magnetization transfer. Short mixing times limit propagation across the spin system, while excessively long periods introduce relaxation losses that reduce signal intensity and complicate interpretation. Since this transfer occurs under sustained spin-lock, TOCSY also places greater demands on radiofrequency performance. Reliable power delivery, thermal stability, and probe efficiency thus become critical factors in achieving reproducible TOCSY data, increasing the importance of instrument design and hardware quality.
Practical Selection: Which Should You Run?
Across routine NMR workflows, COSY and TOCSY are best viewed as complementary tools. Analysts often begin with gradient-enhanced COSY to rapidly establish adjacent proton relationships and confirm basic connectivity. This initial step frequently resolves straightforward structural questions and generates a reliable framework for subsequent analysis. TOCSY becomes more informative as molecular complexity increases. Systems such as natural products, carbohydrates, peptides, or samples with multiple overlapping spin systems benefit from the broader connectivity it reveals. In these situations, identifying complete spin systems provides deeper insight than following individual coupling steps, making TOCSY a logical and efficient technique for further structural analysis.
Precision Engineering for Molecular Discovery

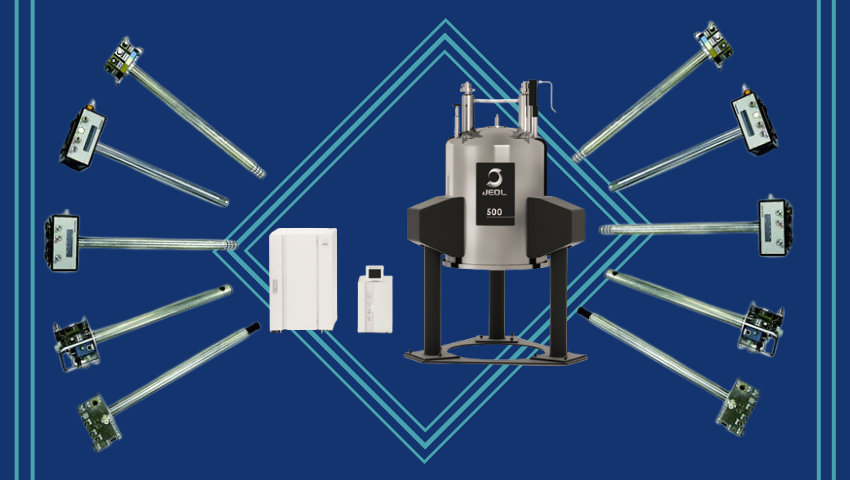

JEOL USA NMR systems are designed to support the practical demands of homonuclear correlation techniques like COSY and TOCSY, where field stability, pulse accuracy, and reproducible radiofrequency performance directly influence data quality. Platforms such as
the JNM-ECZL (ECZ Luminous™) series FT NMR spectrometers provide the stability and timing precision needed to resolve direct couplings in COSY and to sustain reliable spin-lock conditions in TOCSY experiments. When paired with probes, like the
ROYALPROBE™ HFX or
P+, which are engineered to tolerate the power requirements of extended spin-lock mixing, researchers can confidently acquire high-quality multi-dimensional data, including in crowded spectral regions. When paired with JEOL's
Delta NMR software for experimental control and processing, these systems form a robust foundation for COSY and TOCSY workflows across a wide range of molecular applications, including small-molecule structure elucidation, natural product characterization, and carbohydrate analysis. To learn how JEOL USA can support your multi-dimensional NMR analyses, connect with our team to discuss your application needs.
