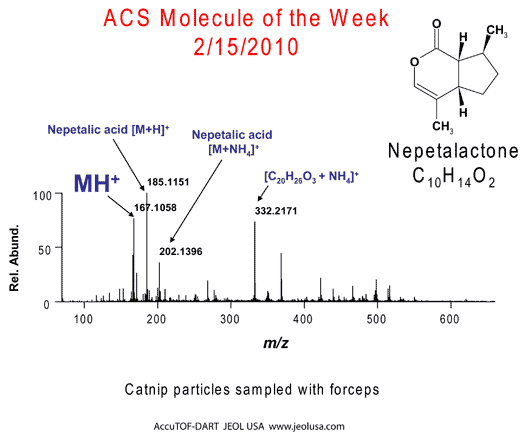

Molecule of the Week Spectra
DART in the News
ERROR
Error processing:
The remote server returned an error: (404) Not Found.

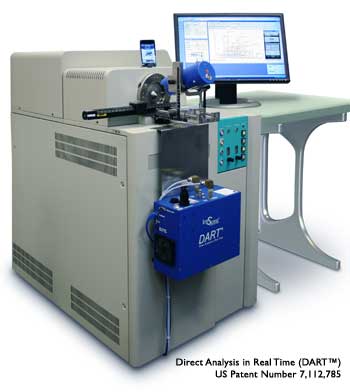

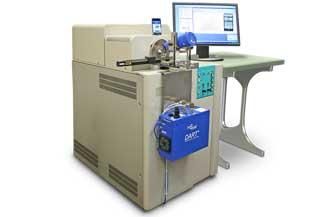

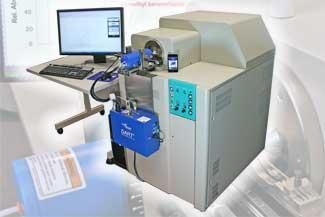

AccuTOF™ DART® Direct Analysis in Real Time
Time-of-Flight Mass Spectrometer

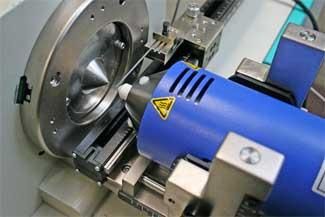

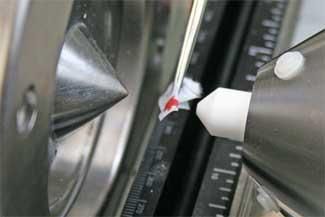

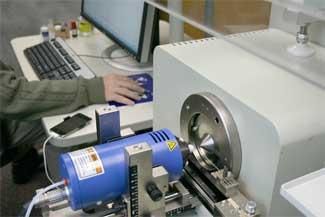

AccuTOF DARTThe JEOL AccuTOF DART is a breakthrough in mass spectrometry. Now you can measure high-resolution, accurate mass spectra by simply placing a sample, in its native form, between the DART ion source and the AccuTOF mass spectrometer inlet. No solvents or sample preparation required. The DART source ionizes almost anything you put in front of it including solutions straight from your synthetic reaction pot, crude extracts, unknown pills or powders, sticky liquids, vapors, TLC plates, and more.

The AccuTOF DART couples the facile operation of the DART ion source with the high-resolution, accurate mass capability of the AccuTOF time-of-flight mass spectrometer. So not only can you rapidly acquire data for mixtures and complete unknowns without sample carryover, but the resulting spectra yield unambiguous assignments, isotopic ratios and elemental compositions. For even more sampling versatility, the standard configuration also includes an orthogonal electrospray (ESI) source.

The revolutionary AccuTOF DART will exponentially improve your MS workflow - it is the only high-performance mass spectrometer system that works as fast as you think.

[ Learn More about the AccuTOF-DART ]

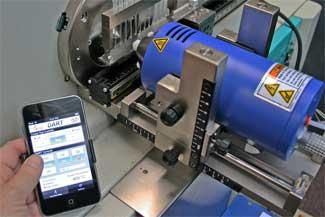

New AccuTOF-DART SVP with iDART Automation
click here for more information


Applications Notebook 4th Edition

Download the AccuTOF DART Applications Notebook 4th Edition.

Learn how easy it is to apply AccuTOF DART technology to a wide variety of chemical and forensic problems. This fourth edition contains all of our AccuTOF DART Application Notes.

Prefer a hardcopy? Contact us.


New in the Document Library

Direct Analysis in Real Time (DART) Papers at Pittcon 2009

GC/MS with a DART® Ion Source
The output of a gas chromatograph was connected to an AccuTOF-DART® to provide a simple GC/MS interface.
11/20/2009
AccuTOF DART Application Notes Booklet
Learn how easy it is to apply AccuTOF DART technology to a wide variety of Chemical and Forensic problems. Contains all of our AccuTOF DART Application Notes.
11/20/2009
Direct Analysis in Real Time (DART®) Mass Spectrometry
Currently available ion sources place extreme restrictions on the speed and convenience of sample analysis by mass spectrometry. Here we report a method for using mass spectrometry to instantaneously analyze gases, liquids, and solids in open air at ground potential under ambient conditions.
11/20/2009
Detection of Lipids Using Direct Analysis in Real Time Mass Spectrometry
AccuTOF-DART® has many applications towards the analysis of oils, fats, and surfactants. One area this technology can be applied involves directly analyzing different cooking oils for their triglyceride content.
3/5/2009
Using Solid Phase Microextraction with AccuTOF-DART® for Fragrance Analysis
In this work, the Direct Analysis in Real Time (DART®) heated gas stream is used to desorb and directly introduce a SPME sample into a high-resolution mass spectrometer. This methodology produces comparable information to the traditional GC-MS technique but streamlines the results into only a few seconds of analysis time.
3/4/2009

Application Notes
Using Solid Phase Microextraction with AccuTOF-DART® for Fragrance Analysis
3/4/2009 326.0 KB
Detection of Lipids Using Direct Analysis in Real Time Mass Spectrometry
3/5/2009 389.3 KB
AccuTOF DART Application Notes Booklet
11/20/2009 10.2 MB
Analysis of Biological Fluids
12/15/2005 190.0 KB
Analysis of deoxynivalenol in beer
4/1/2008 285.1 KB
Analysis of stobilurins in wheat grains using DART-TOFMS
4/1/2008 246.9 KB
Chemical Analysis of Fingerprints
12/15/2005 71.0 KB
Chemical Reaction Monitoring
3/8/2007 44.1 KB
DART Analysis of Aspirin: Correcting a Misapprehension
1/31/2008 49.6 KB
DART Contamination Resistance: Analysis of Compounds in Saturated Salt and Buffer Solutions
9/15/2005 44.5 KB
1 2 3 4 5

Published Papers
Alcohols Can Now Be Analyzed by a Direct Analysis in Real Time Method - Applications for Chemical Warfare Agent Synthesis
9/13/2009
Detection of Peroxide and Tetrazine Explosives on Surfaces by Direct Analysis in Real Time Mass Spectrometry
9/13/2009
An Improved Protocol for the Analysis of Alcohols by Direct Analysis in Real Time Mass Spectrometry
9/13/2009
Detection of Chemical Warfare Agents on Surfaces Relevant to Homeland Security by Direct Analysis in Real-Time Spectrometry
9/13/2009
Direct Analysis in Real Time (DART) – A New Ionization Technique
9/21/2009
DART–TOFMS -- A Challenging Approach in Rapid Monitoring of Brominated Flame Retardants in Environmental Matrices
9/21/2009
Direct Analysis in Real Time - Time-of-Flight Mass Spectrometry -- Analysis of Pesticide Residues and Environmental Contaminants
9/21/2009
HerbalScience Group LLC uses AccuTOF-DART to Identify Health Benefits of its Elderberry Extract in Multiple Scientific Research Studies
10/16/2009
A Collaborative Epidemiological Investigation into the Criminal Fake Artesunate Trade in South East Asia
2/21/2008 760.7 KB
