The effectiveness of energy dispersive spectroscopy (EDS) is determined by X-ray collection sensitivity and spectral energy resolution. That responsibility falls to the detector, which defines the practical limits of EDS performance long before an X-ray energy spectrum is formed. A silicon drift detector (SDD) can convert X-ray photon energy into electronic signals that preserve both intensity and energy information, while its low-capacitance design enables high count rates with minimal electronic noise. These characteristics directly govern spectral resolution, mapping speed, and analytical stability. The performance of an EDS system is ultimately governed by the behavior of its SDD.

An SDD consists of a high-purity silicon wafer that serves as the active sensing volume. Concentric drift rings patterned onto the wafer are biased at progressively decreasing voltages, establishing a well-defined radial electric field within the detector. This internal field directs charge carriers generated by X-ray absorption toward a central collecting anode, enabling controlled charge transport across the sensor.

When an X-ray photon is absorbed in the silicon, it produces electron-hole pairs in proportion to the photon energy. The electrons are guided by the radial electric field and drift through the silicon in the direction of the anode. Because charge is transported across the detector rather than collected at the point of interaction, the response remains uniform across the active area and largely independent of the photon impact location.

A defining feature of the silicon drift detector is its extremely small anode. Its capacitance reduces electronic noise and allows signals to be processed rapidly. Consequently, SDDs can operate at high count rates and maintain energy resolution, a combination that distinguishes SDDs from earlier detector designs, such as lithium-drifted silicon (Si(Li)) detectors.

The physics of the SDD establishes the baseline capabilities of an EDS system, but performance in practice depends just as strongly on how the detector is integrated into the electron microscope. The SDD occupies a fixed position within the EDS system, where its placement, viewing geometry, and electronic coupling determine how efficiently X-rays are collected and processed.

Mechanically, the SDD is positioned to maximize the solid angle, increasing the fraction of emitted X-rays that reach the sensor. A larger solid angle increases collection efficiency, which is especially important at short working distances and low beam current. The placement of the SDD also defines the take-off angle, the path X-rays follow from the interaction volume to the detector. An appropriate take-off angle reduces absorption by surface topography and improves quantitative accuracy, particularly for samples with rough or complex geometries.

Electronically, the SDD forms the front end of the EDS signal chain. Modern SDDs integrate the field-effect transistor directly onto the sensor chip, placing the first amplification stage as close as possible to charge collection. This on-chip design minimizes parasitic capacitance, reduces noise pickup, and preserves signal integrity. The resulting signals generated by the SDD pass through the preamplifier and into the digital pulse processor, where individual X-ray events are shaped, digitized, and assigned to energy channels. With charge collection, amplification, and pulse processing integrated, the SDD serves as the physical and electronic interface between X-ray generation in the sample and the spectra and maps produced by EDS.

SDDs have become the industry standard because their performance aligns closely with the practical demands of modern EDS. As the front of the EDS signal chain, SDDs routinely handle count rates above 100,000 counts per second, supporting live spectral observation and rapid elemental mapping without compromising data quality.

At the same time, SDDs maintain energy resolution in the 129-133 eV range at Mn Kɑ, depending on system configuration, even under high X-ray flux. Low dead time ensures that increased photon rates translate into usable analytical data rather than lost counts, allowing analysts to adjust beam conditions to prioritize speed, sensitivity, or spatial resolution.

Thermal efficiency also contributes to the widespread use of SDDs. Peltier cooling provides stable detector temperatures without liquid nitrogen, enabling compact integration and consistent EDS operation over extended periods.

Low-voltage microanalysis below 5 kV places strict demands on detector sensitivity, conditions under which SDDs enable the reliable detection of light elements such as boron, carbon, and nitrogen. Because X-ray yields are inherently low at these accelerating voltages, high intrinsic sensitivity and low electronic noise are critical. Here, SDDs allow meaningful signal collection and make surface-sensitive EDS analysis more practical and reliable.

The high count rate capability further extends the usefulness of SDDs in time- and dose-limited analyses. By collecting more usable data per unit time, SDDs reduce the need for aggressive beam conditions while maintaining analytical confidence, even for challenging samples.

This performance profile is especially important for:

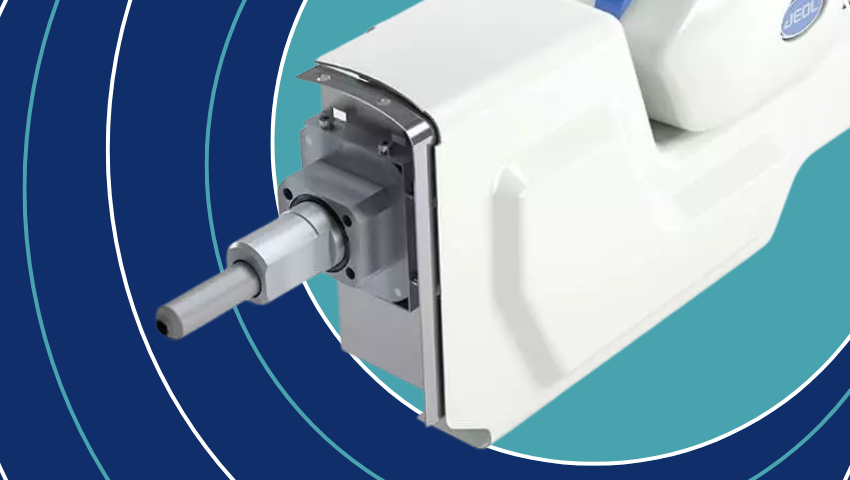

JEOL USA designs its electron microscopes to incorporate the SDD as part of the EDS system architecture, rather than as an external add-on. Detector position, chamber geometry, and column design are engineered together to control solid angle, take-off angle, and signal stability. Our JED-2300T Large-Angle SDD EDS system reflects this approach by positioning large-area detectors close to the specimen in the analytical transmission electron microscope (TEM), maximizing X-ray collection solid angle while preserving consistent geometry. This allows for spectroscopy up to the atomic level. Contact our specialists today to discuss how the JED-2300T Large-Angle SDD EDS system can support your analytical TEM requirements.
