JNM-ECZR Research NMR Spectrometer

The latest in digital and high frequency NMR technologies

Line of ECZ Research Spectrometers

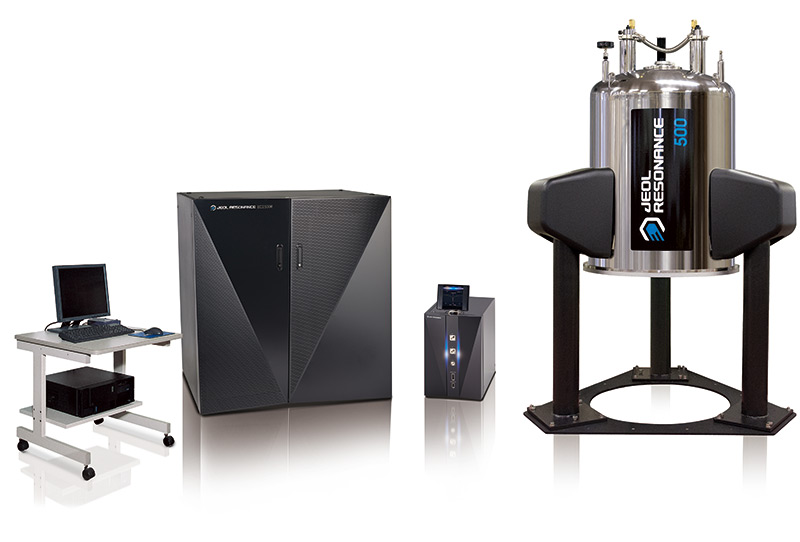

The FT NMR spectrometer JNM-ECZR series represents the latest in digital and high frequency NMR technologies. Improved reliability and a more compact size are made possible by incorporating more advanced integrated circuits, it supports even greater expandability options than current models for multi-channel operation, high power amplifiers and other accessories. Advanced software and automation enables highly sophisticated measurements to be carried out while most routine measurement operations can be performed automatically. Many types of probes such as ultra fast solid state probe and cryogenic solution probes are available.

This series is regularly offered at 500 MHz, 600 MHz, 700 MHz, and 800 MHz. Even higher field instruments are available, please inquire.

Looking for a model that is for routine and everyday use, but still incorporates ultrahigh accuracy RF circuitry utilizing the latest digital high frequency technology? JEOL also offers the 400MHz Routine NMR for your day-to-day needs.

Latest Digital and High Frequency Technology

STS (Smart Transceiver System)

STS offers high performance in a compact size using a fusion of integrated digital circuit technology and the latest high frequency technology. The design, optimized for efficient transceiving and high precision digital signal processing, gives rapid and precise control of RF (radio frequency). The compact unit is equipped with signal receiver and transmitter functions that allows generation of up to 8 independent frequencies, and enables event control at 5 nanosecond resolution.

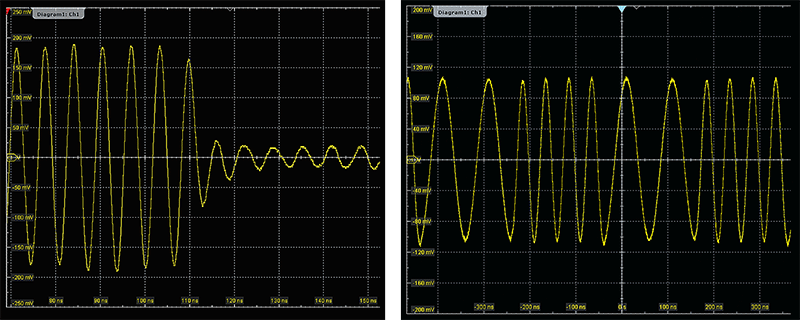

The receiver system uses high speed sampling at 16 bit 100 Msps, maximum observation range 10 MHz, and improves the effective dynamic range up to the equivalent of 22-24 bits using a high over-sampling rate. The use of a 64 bit acquisition word length ensures error-free prolonged measurements.


Lock feedback circuitry

The lock feedback circuit provides digital control of the interlock between the lock frequency and the shim controller. It provides accurate digital control of the response necessary for any magnetic field variations arising from environmental changes.


High order shim control yields high magnetic field homogeneity

The Lagrange shim, used on systems at 500 MHz or greater, consists of 44 software controlled shim gradients. High order shims correct local magnetic field distortions and fully support high resolution measurements. (For 400 MHz, a digital matrix shim of 21 gradients is used.)


Linear Magnetic field gradient function

When used with the standard "ROYAL" probe, pulsed field gradients of up to 90 G/cm are possible ( the standard pulsed field gradient power supply affords gradients up to 30 G/cm).

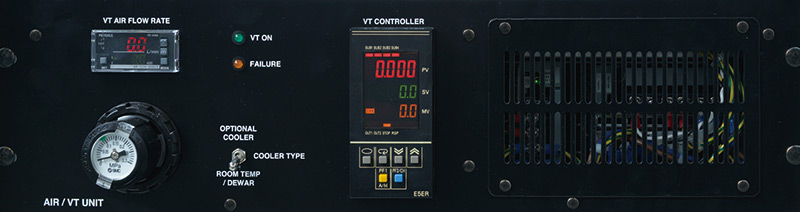

Highly stable temperature control system

The improved response in the probe heater and control unit achieves highly stable sample temperatures. The high speed control bus line that connects the spectrometer to attachments has been improved and provides rapid and stable operation of attachments. By incorporating the NMR lock function and the magnetic field gradient control function into one module, the interlock between the lock feedback circuit and the spectrometer control computer is enhanced. This makes possible the precise response necessary for any magnetic field variations arising from environmental or other changes.


Enhanced usability

The head amp chassis is equipped with functions that facilitate probe tuning. A touch panel display at the top of the head amp chassis provides an intuitive user interface. The panel displays items that are helpful for each step in operation, including a reflective dip and value (bar) for probe tuning, and the remaining cryogen amount when refilling liquid helium or liquid nitrogen. This significantly enhances the ease of operation.


Intuitive control software

Incorporating an additional interface for simple, routine operation, the Delta software for spectrometer control and data processing supports both simple and sophisticated applications. A minimum sequence of operation is needed for routine, standard analysis, such as selection of a solvent or measurement mode. For more complicated analysis with numerous conditions, the system will automatically define hardware parameters, including those for the spectrometer and probe, allowing the operator to set up only the conditions specific to the sample or research objective.
