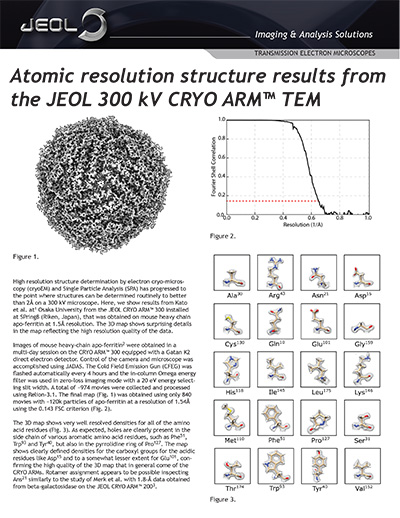

Atomic resolution structure results from the JEOL 300 kV CRYO ARM™ TEM

High resolution structure determination by electron cryo-microscopy (cryoEM) and Single Particle Analysis (SPA) has progressed to the point where structures can be determined routinely to better than 2Å on a 300 kV microscope. Here, we show results from Kato et al. at1 Osaka University from the JEOL CRYO ARM™ 300 installed at SPring8 (Riken, Japan), that was obtained on mouse heavy chain apo-ferritin at 1.5Å resolution. The 3D map shows surprising details in the map reflecting the high resolution quality of the data.

Atomic resolution structures of biological macromolecules using microED on JEOL TEMs

Micro electron diffraction, or microED, is a technique aimed at solving structures of biological macromolecules by electron diffraction. Barn-storming work by the group from Prof. Gonen showed the impressive impact and promise of this technique1. The technique borrows from X-ray crystallography in that precession techniques are used for data collection and that much of the well-established software for solving structures by X-ray crystallography can be used for microED. However, it differs in a fundamental way in that electrons are used, which, owing to the substantially larger scattering cross-section of electrons with biological matter, means much smaller crystals can be used.

Can I Trust My Quantitative EDS Data?

Scanning electron microscopes (SEM) coupled with an energy dispersive X-ray detector (EDS) are used extensively to provide insight into a sample’s chemical makeup. This SEM-EDS technique can provide information on the elements present, their relative concentrations and spatial distribution over very small volumes (micron and some instances nanometer scale).

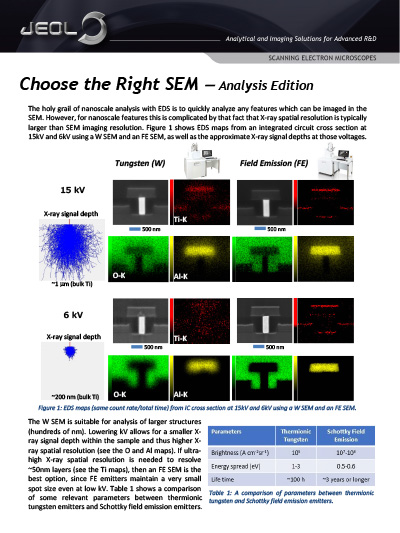

Choose the Right SEM − Analysis Edition

The holy grail of nanoscale analysis with EDS is to quickly analyze any features which can be imaged in the SEM. However, for nanoscale features this is complicated by that fact that X-ray spatial resolution is typically larger than SEM imaging resolution. Figure 1 shows EDS maps from an integrated circuit cross section at 15kV and 6kV using a W SEM and an FE SEM, as well as the approximate X-ray signal depths at those voltages.

Compact, Analytical SEM-EDS: JEOL’s Latest Generation InTouchScope™ JSM-IT200LA

The JSM-IT200LA SEM delivers the ultimate user experience for high through- put imaging and elemental analysis. An embedded color camera simplifies specimen navigation, advanced automation delivers crisp secondary and backscatter images in seconds, and Real-Time (Live) EDS provides instant feedback of the specimen composition for intuitive operation at any experi- ence level. This All-in-One SEM also includes high and low vacuum modes for observation of a wide range of specimen types without compromise. All of this is delivered at a great value.

CRYO ARM™ series microscopes for cryo-EM in structural analysis of proteins and viruses

Cryo-EM has seen an enormous increase in capabilities and potential in recent years owing to a number of technological advances, e.g. direct detector devices and improved scope automation. JEOL released two electron cryo-microscopes in 2017 specifically designed for automated and unattended, continuous operation at 200 and 300 kV, the CRYO ARM™ series. A recent update on both type of CRYO ARMs has the potential of increasing the throughput well beyond the current limit of 20,000 images/day, namely north of 50,000 images/day as well as extending the resolution to nearly true atomic resolution, i.e. 1.2Å.

CryoNote

“Visualize the truth” is a hope of researchers who use various measuring equipment. Researchers who use electron microscopes as well have a desire to observe the real structure. But actually, in experiments using electron microscopes, many problems arise: They include damage regions of the specimen when it is cut for the size suited to observation, artifacts due to the staining that is applied to enhance image contrast, deformation caused by substitution of water to resin for withstanding vacuum exposure, and thermal damage to the specimen with electron-beam irradiation. As a result, the visualization of the real structure in the microscope image becomes increasingly difficult. One recommended solution is to cool the specimen, that is, “Cryo” techniques. This “Cryo Note” introduces some of the diversified cryo-techniques. We sincerely hope your challenge to observe the “real structure” will be solved by “Cryo” methods.

Designing Better Batteries Through Innovative Microscopy Characterization

Scanning Electron Microscopes (SEM) support the development of new LIB technologies with morphological observation at the micrometer to nanometer scale, as well as the chemical analysis needed to create high-performance coatings and powders. Ultra-low voltage imaging combined with signal filtering in the SEM allows direct imaging and analysis of battery constituents (anode and cathode) with nanometer resolution. Additionally, one of the important aspects of the analysis is the ability to probe chemistry of the constituents at nm scale (Fig. 1). JEOL FESEM offers the ability to perform microanalysis with energy dispersive spectroscopy (EDS) at extremely low voltages to pinpoint localized makeup of the specimens and, in particular, low atomic number materials such as carbon and fluorine. Moreover, the unique JEOL Soft X-ray spectrometer (SXES) allows researchers to analyze Li.
